直線導軌的工作原理是什么?
來源:http://m.zhzdh888.com/ 日期:2022-07-07 發布人:

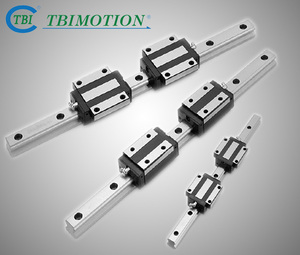

直線導軌的工作原理可以理解為是一種滾動導引,是由鋼珠在滑塊跟直線導軌之間無限滾動循環, 從而使負載平臺沿著導軌輕易的高精度線性運動,并將摩擦系數降平常傳統滑動導引的五十分之一,能輕易地達到很高的定位精度。滑塊跟導軌間末制單元設計,使線形導軌同時承受上下左右等各方向的負荷,特定的回流系統及精簡化的結構設計讓HIWIN的線性導軌有更平順且低噪音的運動。滑塊-使運動由曲線轉變為直線。新的導軌系統使機床可獲得快速進給速度,在主軸轉速相同的情況下,快速進給是直線導軌的特點。
The working principle of the linear guide can be understood as a kind of rolling guidance, which is an infinite rolling cycle between the slider and the linear guide by the steel ball, so that the load platform can easily move in a high-precision linear motion along the guide, and the friction coefficient can be reduced to one-fifth of the ordinary traditional sliding guidance, which can easily achieve high positioning accuracy. The final unit design between the slider and the guide rail enables the linear guide rail to bear the load in the up, down, left, right and other directions at the same time. The specific reflux system and the refined and simplified structural design enable HIWIN's linear guide rail to move more smoothly and with low noise. Slider - changes the motion from a curve to a straight line. The new guide rail system enables the machine tool to obtain rapid feed speed. Under the condition of the same spindle speed, rapid feed is the characteristic of linear guide rail.


直線導軌與平面導軌一樣,有兩個基本元件;一個作為導向的為固定元件,另一個是移動元件。由于直線導軌是標準部件,對機床制造廠來說.要做的只是加工一個安裝導軌的平面和校調導軌的平行度。當然,為了保證機床的精度,床身或立柱少量的刮研是必不可少的,在多數情況下,安裝是比較簡單的。作為導向的導軌為淬硬鋼,經精磨后置于安裝平面上。與平面導軌比較,直線導軌橫截面的幾何形狀,比平面導軌復雜,復雜的原因是因為導軌上需要加工出溝槽,以利于滑動元件的移動,溝槽的形狀和數量,取決于機床要完成的功能。例如:一個既承受直線作用力,又承受顛覆力矩的導軌系統,與僅承受直線作用力的導軌相比.設計上有很大的不同。
Like plane guide rail, linear guide rail has two basic components; One is a fixed element as a guide, and the other is a moving element. As the linear guide rail is a standard component, for machine tool manufacturers, all they need to do is to process the plane of an installation guide rail and adjust the parallelism of the guide rail. Of course, in order to ensure the accuracy of the machine tool, a small amount of scraping and grinding of the bed or column is essential. In most cases, the installation is relatively simple. The guide rail as a guide is made of hardened steel, which is placed on the installation plane after fine grinding. Compared with the plane guide rail, the geometry of the cross section of the linear guide rail is more complex than the plane guide rail. The reason for the complexity is that the guide rail needs to be processed with grooves to facilitate the movement of the sliding elements. The shape and number of grooves depend on the function of the machine tool. For example, the design of a guideway system that bears both linear force and overturning torque is very different from that of a guideway that only bears linear force.
以上就是為大家介紹的有關導軌絲杠的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務.http://m.zhzdh888.com
The above is a detailed introduction about the guide screw for you. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service http://m.zhzdh888.com
