導軌絲杠滑塊的作業原因以及裝置的辦法
來源:http://m.zhzdh888.com/ 日期:2022-04-01 發布人:
滑塊在進行制造的過程中主要是由多個零部件組合而成的,其產品會有滑塊,鋼珠,保持架,端蓋,防塵蓋,油嘴等部件組成滑塊也是有很多個零件拼裝起來的?;瑝K的作業原因以及裝置的辦法如下:
In the process of manufacturing, the slider is mainly composed of multiple parts. Its products will be composed of slider, steel ball, cage, end cover, dust cover, nozzle and other parts. The slider is also assembled with many parts. The operation reasons of the slider and the method of the device are as follows:

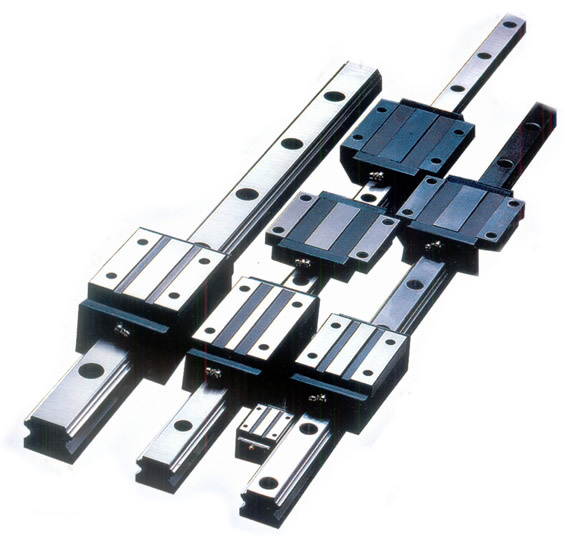

直線導軌在必定程度上能夠有用的理解為一種翻滾的扶引,在進行制造的過程中主要是由鋼珠在滑塊跟導軌之間無限翻滾循環,這樣就會使得負載渠道沿著導軌容易的高精度線性運動,并將摩擦系數降往常傳統滑動扶引的五十分之一,能容易地到達很高的定位精度。直線導軌的滑塊跟其導軌間末制單元規劃,這樣就能夠使得線形導軌一起接受其上下左右等各方向的負荷,其的回流體系以及精簡化的結構,這樣就能夠讓規劃的線性導軌有更平順且低噪音的運動。直線導軌是一種翻滾扶引,在進行使用時主要是由鋼珠在滑塊和導軌之間作無限翻滾循環,這樣就會使得負載渠道能沿著導軌容易的高精度作線性運動,其摩擦系數可降傳統滑動扶引的1/50,使之能容易地到達μm級的定位精度。
To a certain extent, the linear guide rail can be effectively understood as a rolling guide. In the manufacturing process, the steel ball is mainly used for infinite rolling cycle between the sliding block and the guide rail, which will make the load channel move easily along the guide rail with high-precision linear motion, reduce the friction coefficient to one fiftieth of the traditional sliding guide, and easily achieve high positioning accuracy. The slider of the linear guide rail and the final system unit between the guide rails are planned, so that the linear guide rail can accept the load in the up, down, left, right and other directions together, its return system and simplified structure, so that the planned linear guide rail can operate more smoothly and with low noise. The linear guide rail is a kind of rolling guide rail. When in use, the steel ball mainly makes an infinite rolling cycle between the sliding block and the guide rail, which will make the load channel move linearly with high precision along the guide rail, and its friction coefficient can be reduced to 1 / 50 of the traditional sliding guide rail, so that it can be easily reached μ M level positioning accuracy.


直線導軌的滑塊與導軌間的末制單元規劃,使得線形導軌可一起接受上下左右等各方向的負荷,回流體系及精簡化的結構規劃讓直線性導軌有更平順且低噪音的運動。
The final unit planning between the sliding block and the guide rail of the linear guide rail enables the linear guide rail to accept the load in the up, down, left, right and other directions together. The reflux system and refined and simplified structural planning enable the linear guide rail to move more smoothly and with low noise.
以上就是為大家介紹的有關導軌絲杠的詳細介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://m.zhzdh888.com
The above is a detailed introduction to the guide screw. I hope it will be helpful to you If you have any questions, please contact us We will provide you with professional service http://m.zhzdh888.com
